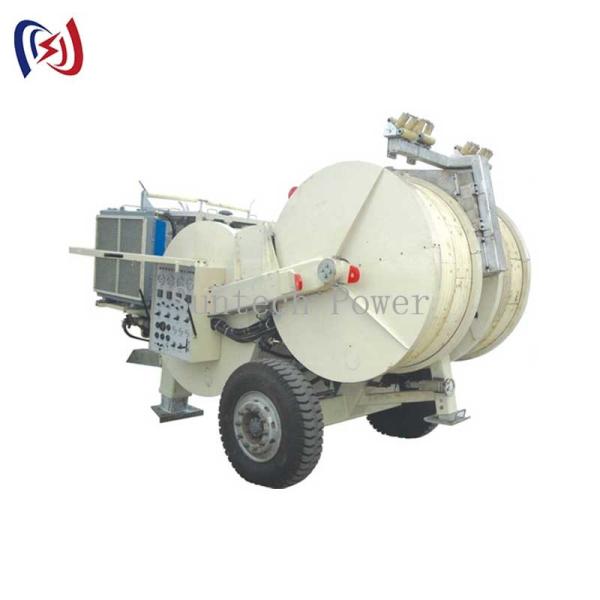

1 X 180KN Hydraulic Traction Equipment Overhead Line Stringing Equipment

Brand Name : Suntech

Model Number : SA-YZM7.5

Certification : ISO9001

Place of Origin : Ningbo, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 1000 SET/Month

Delivery Time : 7-15days

Packaging Details : Wooden Case

Name : Hydraulic Tension Equipment

Item No. : 07212-07201

Maximum Tension : 7.5-2x90/1x180KN

Continuous Tension : 7.5-2x80/1x160KN

Bottom of groovr diamere : 1100-1850mm

Number of groovr : 20-2x90/1x180KN

Maximum speed back : 3-2x1.7KM/H

Weight : 450-10500KG

Warranty : 1 year

Contact Now

Hydraulic Traction Equipment Overhead Line Stringing Equipment

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

Feature:Bull wheel with weae proof MC nylon lining segments.

Infinitely variable tension control and constant tension conductor stringing.

Spring applied hydraulic released brake acts automatically in case.

Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand.

Item No. 07212 07155 07171
Model SA-YZM7.5 SA-YZ30A SA-YZ40A
Maximum Tension(KN) 7.5 30 40
Continuous Tension(KN) 7.5 25 35
Maximum speed(KM/H) 40m/minute 5 5
Bottom of groove diameter(MM) Φ1100 Φ1200 Φ1200
Number of groove(MM) / 5 5
Number of groove(KN) / 20 40
Maximum speed back(KM/H) / / 3
Maximum suitable conductor diameter(MM) / Φ32 Φ32
Engine power/speed(KW/RPM) / 11/2200 51/2500
Dimensions(M) 2.3*1.2*1.6 3.6*1.8*2.4 3.4*1.8*2.4
Weight(KG) 450 1700 2800

Item No. 07181 07192 07197
Model SA-YZ2*35 SA-YZ2*40B SA-YZ2*55
Maximum Tension(KN) 2*35/1*70 2*40/1*80 2*55/1*110
Continuous Tension(KN) 2*30/1*60 2*35/1*70 2*50/1*100
Maximum speed(KM/H) 5 5 5
Bottom of groove diameter(MM) Φ1200 Φ1500 Φ1600
Number of groove(MM) 2*5 2*5 2*5
Number of groove(KN) 2*30/1*60 2*40/1*80 2*50/1*100
Maximum speed back(KM/H) 2*2.1 2*1.5 2*2.1
Maximum suitable conductor diameter(MM) Φ32 Φ40 Φ42.5
Engine power/speed(KW/RPM) 51/2500 51/2500 54/2500
Dimensions(M) 4.4*2.1*2.6 4.5*2.2*2.8 5.0*2.3*2.7
Weight(KG) 4000 4850 7500

1 X 180KN Hydraulic Traction Equipment Overhead Line Stringing Equipment
